7/5 cft 3/4 Bag Bed Type Concrete Mixer Machine
Description

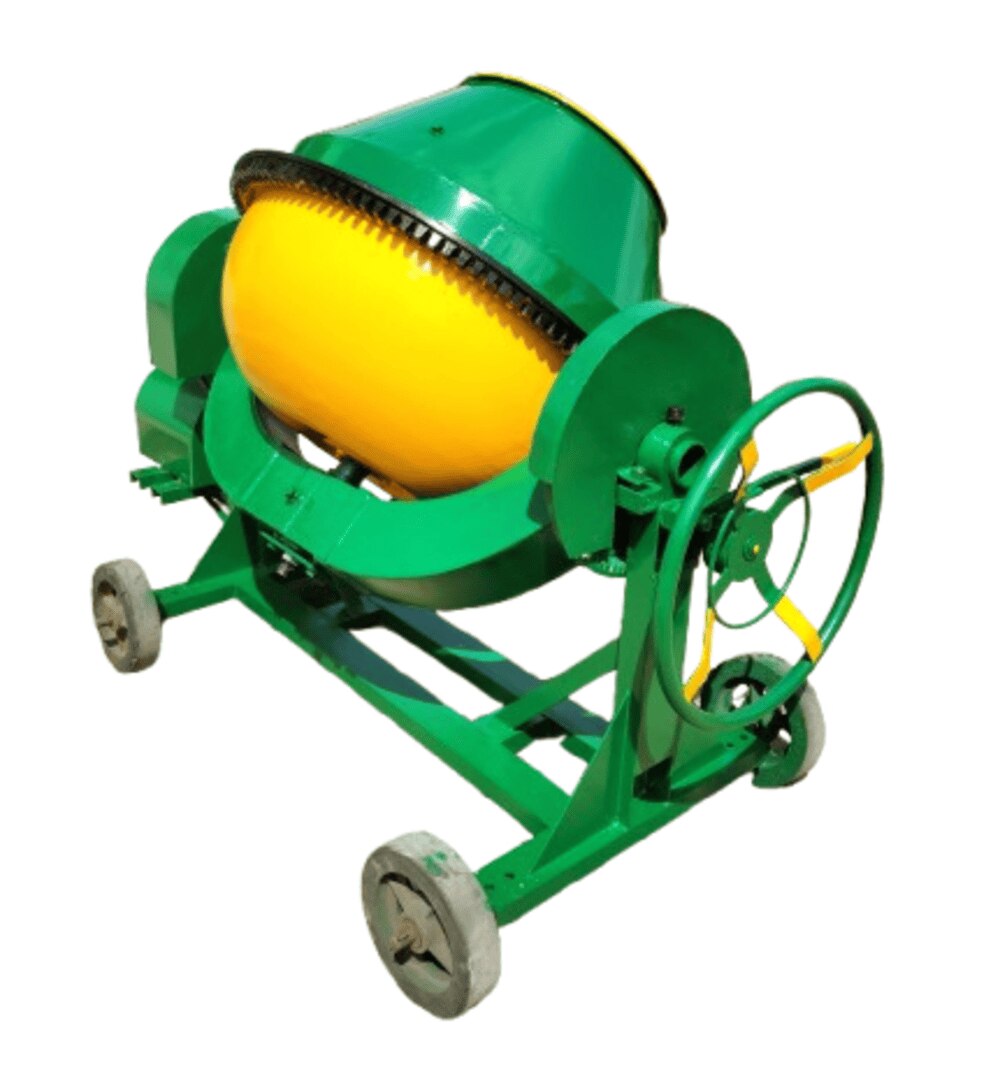

A 7/5 CFT (Cubic Feet) 3/4 Bag Bed Type Concrete Mixer is a portable, heavy-duty construction machine with a 7 cubic feet unmixed/5 cubic feet mixed capacity (handling about 3/4 bag of cement), typically featuring a tilting drum, mild steel chassis, and powered by a diesel engine or electric motor, designed for efficiently blending cement, sand, and aggregates on-site, common in smaller to medium projects.
Key Specifications & Features:
Capacity: 7 CFT (unmixed) / 5 CFT (mixed), suitable for 3/4 bag cement batch.
Power Source: Usually a 6 HP diesel engine (like Kirloskar) or a 3 HP electric motor.
Type: Tilting Drum Mixer, allowing easy discharge of mixed concrete.
Design: “Bed Type” means it's mounted on a sturdy, often portable, chassis with wheels, making it semi-automatic.
Material: Cast iron drum for durability, mild steel chassis.
Performance: Drum rotates at 18-20 RPM, producing around 6-8 cubic meters per hour.
Application: Ideal for home construction, roof work, and general site mixing where portability and moderate output are needed.
How it Works (Bed Type):
Loading: Materials (cement, sand, aggregates, water) are manually fed into the stationary drum.
Mixing: The drum tilts and rotates (driven by the engine/motor) to thoroughly blend the components.
Discharge: The drum tilts further to pour out the mixed concrete.
