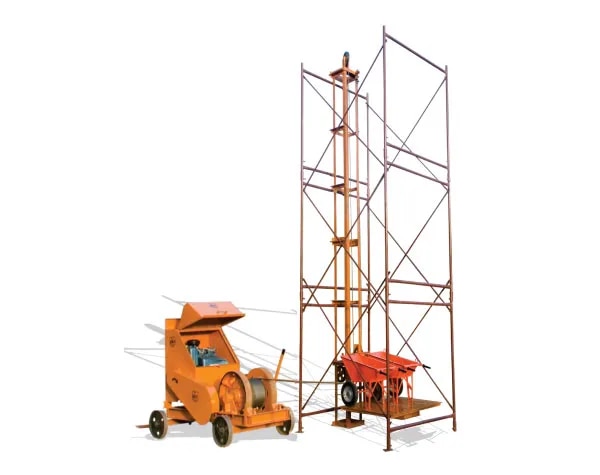

Builder's Hoist Machine

A Builder's Hoist (or Tower Hoist) is a crucial construction machine for safely lifting heavy materials (bricks, cement, tools) and sometimes workers vertically on high-rise sites, using an electric motor driving a rack-and-pinion system or winch to move a platform or cage up a mast, improving productivity by replacing manual labor and enabling vertical transport where cranes can't reach. Key features include sturdy mast sections, robust drive systems (electric/diesel), safety brakes, and platforms designed for efficient loading and unloading, with variations for materials only or personnel.

Key Components

Mast: A vertical tower structure made of bolted sections (often 3m long) that provides support and guidance for the platform.

Hoisting Mechanism (Winch/Motor): An electric motor turns gears (pinions) that mesh with teeth on the mast (rack), pulling the platform up or down.

Platform/Cage: Carries materials (like concrete, blocks) or workers, often with guardrails, designed for easy loading/unloading.

Control Panel: For operating the hoist from the ground or platform.

How it Works (Rack & Pinion)

Power: An electric motor is activated.

Gear Engagement: The motor turns a pinion gear.

Vertical Movement: The pinion gear “climbs” the toothed rack attached to the mast, pulling the attached platform upwards.

Descent: The motor reverses, allowing controlled lowering.

Types & Features

Material Hoists: Open platforms, focus on heavy loads (bricks, sand, concrete).

Personnel/Material Hoists: Enclosed cabins for transporting people and materials.

Power Options: Electric motors or diesel engines.

Safety: Essential brakes, emergency stops, overload protection, and trained operators.

Applications

Lifting materials for high-rise buildings, bridges, and infrastructure.

Transporting goods to floors where cranes can't easily reach.

Reducing manual labor and speeding up construction.
