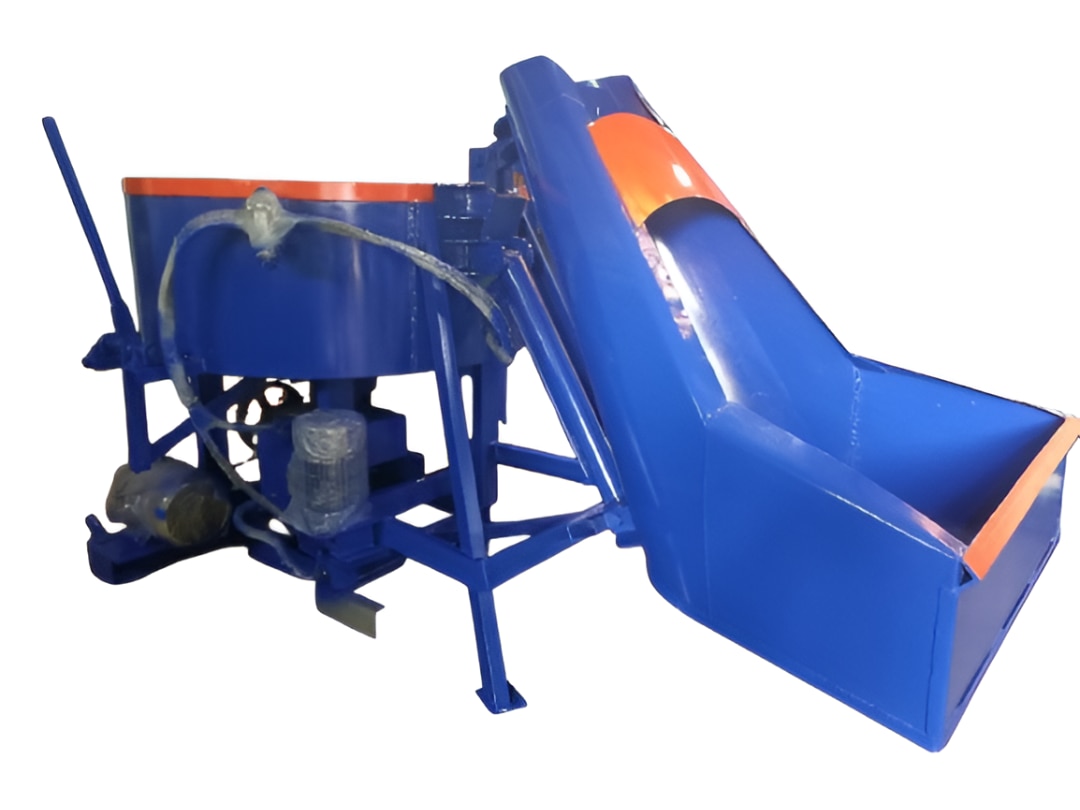

Pan Mixer Machine

A Pan Mixer Machine is an industrial mixer with a stationary circular pan and rotating blades, designed for fast, uniform blending of concrete, mortar, fly ash, and other construction materials, producing high-quality, lump-free mixes ideal for precast and specialized applications where consistency is crucial, differing from drum mixers by its forced, shearing action. It features durable components, often a hydraulic discharge door, and can be integrated into batching plants, offering high efficiency, low noise, and ease of operation.

Key Components & Working

Mixing Pan: A stationary, circular steel container where materials are loaded.

Rotating Blades: One or more sets of hardened blades rotate inside the pan, creating intense mixing forces.

Scraper Blades: Also move along the pan's wall and floor to prevent material buildup and ensure thorough blending.

Motor & Drive System: Powers the blades, often with gears and belts, providing necessary torque.

Hydraulic Discharge Door: Opens to release the mixed material from the bottom of the pan.

Control Panel: For starting/stopping and adjusting functions.

How It Works

Loading: Ingredients (cement, sand, aggregates, water) are added to the pan.

Mixing: The motor drives the blades, which rotate to force ingredients together, creating a consistent, homogenous mix.

Discharge: The pan rotates in one direction for mixing, then reverses or the door opens for discharge, often into a tilting cart or conveyor.

Advantages & Uses

Superior Mix Quality: Creates lump-free, highly uniform mixtures.

Versatile: Suitable for various mixes, including dry, wet, mortar, plaster, and refractory materials.

High Efficiency: Fast mixing cycles and rapid discharge.

Durable & Low Maintenance: Built for demanding construction environments.

Applications: Precast concrete, hollow blocks, paving, road construction, and power plants.
