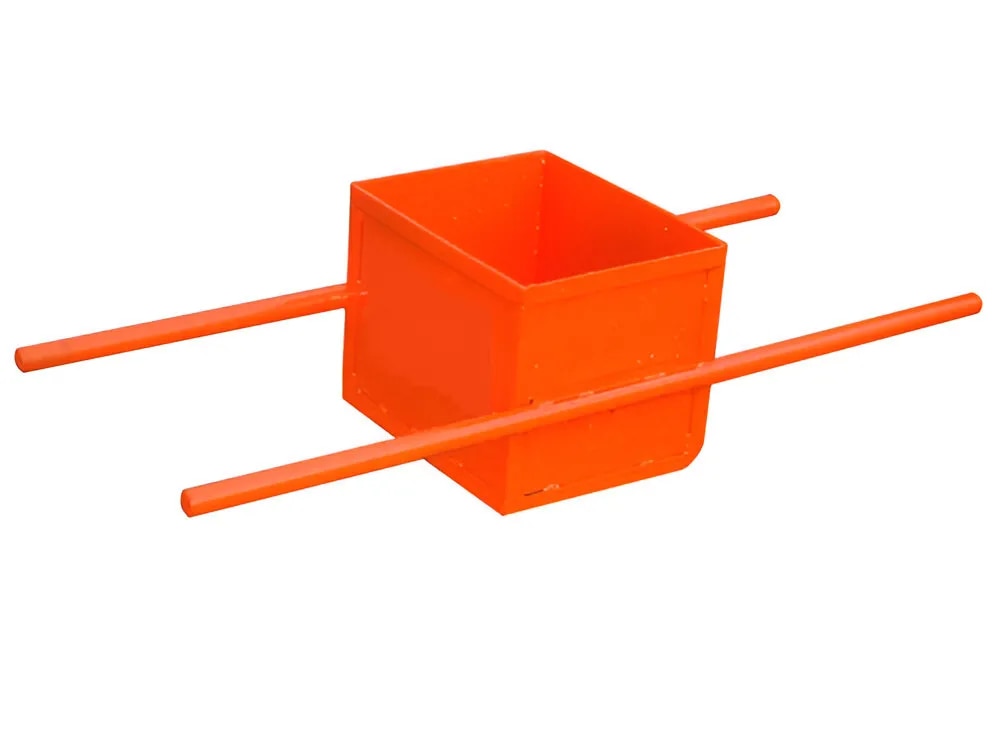

Measurement Box 1.25 cft

A Measuring Box 1.25 cft (cubic feet) is a standardized container, often 12“x12”x15", used in construction for accurate volume measurement of cement, sand, and aggregates to achieve consistent concrete or mortar mix ratios (like 1:1.5:3) without scales, ensuring uniform quality for site-mixed concrete batches. You use it by filling it level with material, then transferring it to the mixer, often alongside a standard cement bag, ensuring precise batching for different concrete grades.

Key Details of a 1.25 cft Measuring Box

Volume: 1.25 cubic feet (CFT) of space.

Dimensions: Often approximates 12 inches (Length) x 12 inches (Width) x 15 inches (Height) internally.

Material: Typically made from heavy-duty steel (e.g., 16g sheet with angle framing) for durability and repeated use.

Purpose: To proportionally measure dry ingredients (cement, sand, coarse aggregate) for concrete and mortar, ensuring consistent mix quality.

How it's Used

Select Mix: Determine your concrete grade (e.g., M20) and its nominal ratio (e.g., 1 cement : 1.5 sand : 3 aggregate).

Measure Ingredients: Fill the 1.25 cft box level (brim-full) with sand or aggregate, then empty it into the mixer. For a 1:1.5:3 mix, you'd add 1.5 boxes of sand and 3 boxes of aggregate per bag of cement.

Batching: Add water and cement (often one bag) to the mixer, ensuring all ingredients are measured by volume using the box for consistency.

Why it's Important

Standardization: Replaces guesswork with measured volumes, crucial when weighing equipment is unavailable.

Quality Control: Ensures consistent concrete strength and performance by maintaining precise ingredient proportions.
