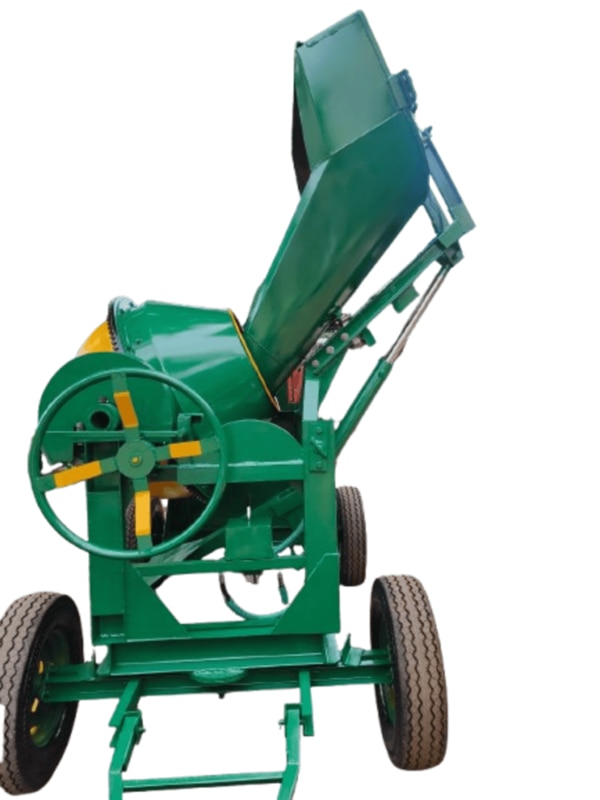

Hydraulic Concrete Mixer Machine - Manufacturer in Howrah ...A Hydraulic Hopper Concrete Mixer Machine uses hydraulic power to lift and feed raw materials (cement, sand, aggregates) into a rotating drum, ensuring fast, safe, and consistent concrete mixing by reducing manual labor and improving batch times with features like a heavy-duty steel body, pneumatic wheels for mobility, and engine/motor options (diesel, electric) for versatile use on construction sites. Key Components & Features: Hydraulic Hopper: The defining feature, it automatically lifts and tilts to load materials, reducing physical effort and risk. Mixing Drum: Heavy-duty steel with internal blades rotates to ensure homogeneous mixing of materials. Power Source: Available with diesel engines (for off-grid) or electric motors (single/three-phase). Chassis & Mobility: Robust steel frame with pneumatic tires for stability and easy movement on rough terrains. Safety Features: Includes hopper locks, overload protection, and emergency stops for operator safety. How it Works: Loading: Materials are loaded into the hopper (manual or automatic feeding). Lifting: The hydraulic system smoothly raises the hopper. Mixing: The hopper tilts, dumping materials into the rotating drum, where they are mixed. Discharge: Once mixed, the drum's rotation is reversed (or a separate discharge door opened) to empty the concrete. Applications: Building Construction: Foundations, beams, columns, slabs. Road Works: Small-scale pavement and surfacing. Infrastructure: Bridges, culverts, and other on-site projects. Benefits: Efficiency: Faster loading and mixing cycles. Quality: Consistent, uniform concrete batches. Safety: Less manual handling of heavy materials. Versatility: Portable and suitable for various site conditions.

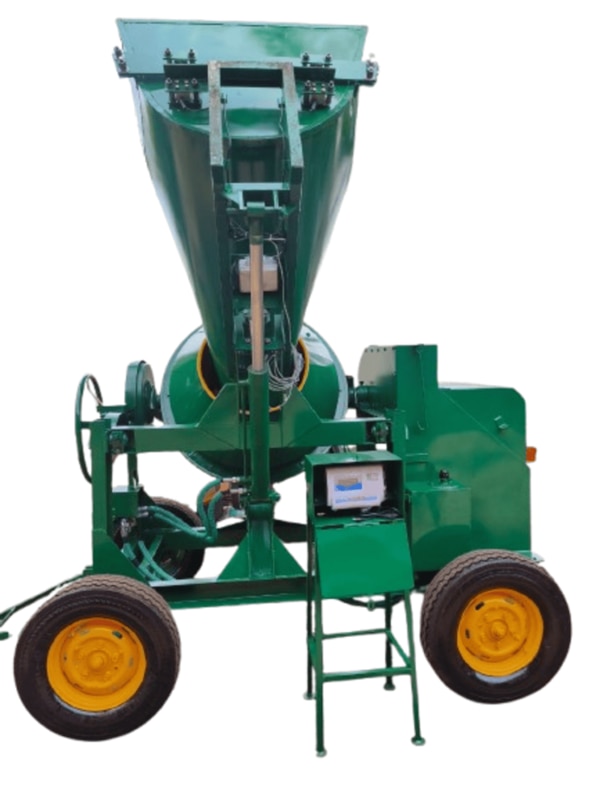

A Hydraulic Hopper Concrete Mixer Machine uses hydraulic power to lift and feed raw materials (cement, sand, aggregates) into a rotating drum, ensuring fast, safe, and consistent concrete mixing by reducing manual labor and improving batch times with features like a heavy-duty steel body, pneumatic wheels for mobility, and engine/motor options (diesel, electric) for versatile use on construction sites. Key Components & Features: Hydraulic Hopper: The defining feature, it automatically lifts and tilts to load materials, reducing physical effort and risk. Mixing Drum: Heavy-duty steel with internal blades rotates to ensure homogeneous mixing of materials. Power Source: Available with diesel engines (for off-grid) or electric motors (single/three-phase). Chassis & Mobility: Robust steel frame with pneumatic tires for stability and easy movement on rough terrains. Safety Features: Includes hopper locks, overload protection, and emergency stops for operator safety. How it Works: Loading: Materials are loaded into the hopper (manual or automatic feeding). Lifting: The hydraulic system smoothly raises the hopper. Mixing: The hopper tilts, dumping materials into the rotating drum, where they are mixed. Discharge: Once mixed, the drum's rotation is reversed (or a separate discharge door opened) to empty the concrete. Applications: Building Construction: Foundations, beams, columns, slabs. Road Works: Small-scale pavement and surfacing. Infrastructure: Bridges, culverts, and other on-site projects. Benefits: Efficiency: Faster loading and mixing cycles. Quality: Consistent, uniform concrete batches. Safety: Less manual handling of heavy materials. Versatility: Portable and suitable for various site conditions.

A Hydraulic Hopper Concrete Mixer Machine uses hydraulic power to lift and feed raw materials (cement, sand, aggregates) into a rotating drum, ensuring fast, safe, and consistent concrete mixing by reducing manual labor and improving batch times with features like a heavy-duty steel body, pneumatic wheels for mobility, and engine/motor options (diesel, electric) for versatile use on construction sites. Key Components & Features: Hydraulic Hopper: The defining feature, it automatically lifts and tilts to load materials, reducing physical effort and risk. Mixing Drum: Heavy-duty steel with internal blades rotates to ensure homogeneous mixing of materials. Power Source: Available with diesel engines (for off-grid) or electric motors (single/three-phase). Chassis & Mobility: Robust steel frame with pneumatic tires for stability and easy movement on rough terrains. Safety Features: Includes hopper locks, overload protection, and emergency stops for operator safety. How it Works: Loading: Materials are loaded into the hopper (manual or automatic feeding). Lifting: The hydraulic system smoothly raises the hopper. Mixing: The hopper tilts, dumping materials into the rotating drum, where they are mixed. Discharge: Once mixed, the drum's rotation is reversed (or a separate discharge door opened) to empty the concrete. Applications: Building Construction: Foundations, beams, columns, slabs. Road Works: Small-scale pavement and surfacing. Infrastructure: Bridges, culverts, and other on-site projects. Benefits: Efficiency: Faster loading and mixing cycles. Quality: Consistent, uniform concrete batches. Safety: Less manual handling of heavy materials. Versatility: Portable and suitable for various site conditions.

“Column boxes” refers to two related concepts: column formwork (a temporary mold used in concrete construction) and box columns (a specific type of hollow structural column made of steel). 1. Column Formwork (Column Box Shuttering) In concrete construction, a column box (or column formwork/shuttering) is a temporary mold placed around the reinforcing steel bars (rebar) into which wet concrete is poured. Purpose: It holds the fresh concrete in place, prevents it from spreading or distorting, and ensures it sets into the correct, desired shape and size with a smooth finish and sharp edges. Materials: Formwork can be made from various materials, including timber, plywood, or steel sheets. Steel formwork is often reusable, durable, and provides a smooth finish. Process Details: The formwork is assembled around the existing rebar and securely braced to prevent bulging under the pressure of the wet concrete. Shuttering oil or a release agent is applied to the interior to facilitate easy removal after the concrete has cured. After the concrete hardens sufficiently, the column box is disassembled and removed. 2. Box Columns (Steel Box Columns) Box columns are a type of permanent, vertical structural element used to support heavy loads in buildings, bridges, and other infrastructure. Description: They are characterized by a hollow, closed cross-section (usually square or rectangular) made from steel plates welded together. Key Features and Benefits: High Strength-to-Weight Ratio: They provide excellent strength and stability with less material compared to a solid column. Torsional Strength: Their closed shape offers superior resistance to twisting (torsional) forces, making them ideal for high-rise buildings and structures subject to dynamic forces like wind or earthquakes. Design Flexibility: The hollow interior can be used to run utilities (electrical, plumbing, HVAC services), saving space. Aesthetics: They offer a clean, modern look. Applications: Commonly used in skyscrapers, bridges, industrial warehouses, and other projects requiring high load-bearing capacity and stability. The specific size (width, thickness) is determined by engineers based on the required load capacity and building codes.

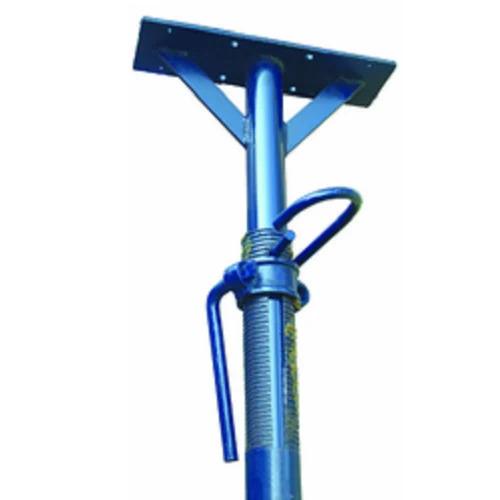

An adjustable span is a versatile, temporary steel support used in construction to hold formwork for slabs, beams, and other horizontal surfaces, featuring an extendable length for flexibility, replacing traditional timber props for efficiency, and designed for strength, durability, and easy fitting in various spaces. They provide crucial support during concrete curing, allowing for quick setup and adjustment to different project dimensions, saving labor and material costs. Key Components & Features Material: Typically made from Mild Steel (MS) or stainless steel, often with protective paint. Adjustability: Telescopic design allows extension and retraction to match specific span widths. Strength: Designed to be sturdy and durable, withstanding construction loads. Versatility: Can be used for various applications, from supporting slab formwork to acting as temporary props. How They Work Placement: Spans are placed between supports (like scaffolding or walls) at the required height. Extension: The span is adjusted to the precise distance needed to support the formwork. Support: It holds the formwork securely until the concrete gains sufficient strength, after which it is easily removed and reused. Benefits Cost-Effective: Reduces the need for cutting timber and minimizes material waste. Efficient: Faster to erect and dismantle than traditional wooden supports. Flexible: Adaptable to different spans and heights, ensuring consistent support. Reusable: Durable construction allows for multiple uses across projects. Applications Slab Formwork Support (Shoring) Beam Support General Temporary Support in Buildings & Renovations

A scaffolding jack (also called a prop jack, base jack, or U-head jack) is an adjustable, load-bearing component used to provide stable and precise vertical support for scaffolding structures and formwork during construction. Key Details and Function Primary Function: Scaffolding jacks are crucial safety components. Their main purpose is to transfer the weight of the scaffold, workers, and materials safely to the ground or supporting surface. Adjustability: They feature a threaded rod and a corresponding jack nut or handle mechanism which allows for precise height adjustments. This is essential for: Leveling the scaffolding on uneven ground or surfaces. Achieving exact heights for formwork (e.g., supporting concrete slabs or beams). Material: They are typically made from durable materials like mild steel or iron, often with a galvanized or painted finish to resist corrosion and ensure strength under heavy loads. Components: A standard jack assembly includes: Base Plate/U-Head Plate: A flat plate at the bottom (base jack) to distribute the load onto a sole board or the ground, or a U-shaped head plate at the top (U-head jack) to support beams or ledgers. Inner and Outer Tubes: A telescopic design where an inner tube moves within a larger outer tube for height extension/retraction. Threaded Portion/Jack Nut: The mechanism used to precisely adjust and lock the height in place. Safety Features: Many include safety pins or locking mechanisms to prevent accidental collapse or movement. Types of Jacks Base Jack: Sits at the bottom of the scaffold's vertical standards (uprights) to provide a stable, adjustable foundation. U-Head Jack: Placed at the top of a prop or standard, featuring a U-shaped head to securely hold horizontal components like timber beams or ledgers for formwork. In essence, the scaffolding jack is a fundamental, versatile component that provides the necessary stability, adjustability, and load-bearing capacity for safe and efficient construction work at various heights.

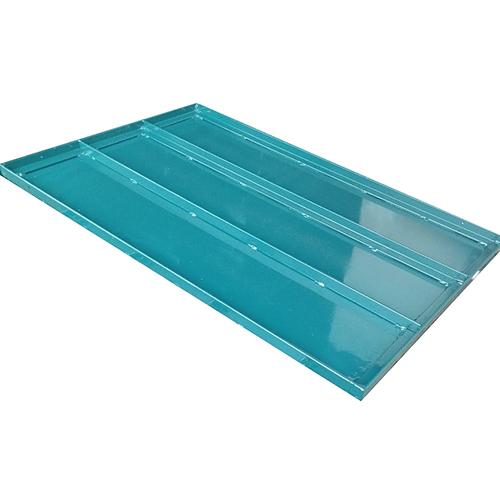

Centering sheets are temporary support structures (formwork) used in construction to mold and hold wet concrete in desired shapes (slabs, beams, arches) until it hardens, preventing sagging and ensuring structural integrity, typically made from plywood or metal and forming a reusable, strong base for concrete casting. They provide the mold or base for concrete, with key types including plywood (shuttering ply) and steel (folding or regular), available in various sizes, offering strength, reusability, and precise shaping for safe and efficient construction. Purpose & Function Support Wet Concrete: They hold the concrete in place as it sets and gains strength, preventing it from collapsing or deforming. Shape Structures: They create the mold for architectural elements like slabs, beams, columns, arches, and domes. Ensure Stability: Essential for the safety and precision of the final structure, especially in curved or elevated work. Types of Centering Sheets Plywood Centering (Shuttering Plywood): Often waterproofed, durable, and reusable, offering a smooth finish. Metal Centering Sheets (Steel Plates): Known for high tensile strength, corrosion resistance, and long life, often featuring folding designs for easy handling and storage. Key Features & Benefits High Strength: Engineered to bear heavy concrete loads. Reusability: Cost-effective due to multiple uses, especially metal types. Efficiency: Folding designs reduce storage space and assembly time. Versatility: Used across various construction applications, from basic slabs to complex curved structures. Material & Design Considerations Materials: Wood, plywood, or mild steel (MS). Finishes: Color-coated, galvanized. Designs: Folding types for portability, standard plates. Specifications: Available in various dimensions (e.g., 600x900mm, 600x1250mm) and thicknesses (e.g., 2mm, 3.2mm).

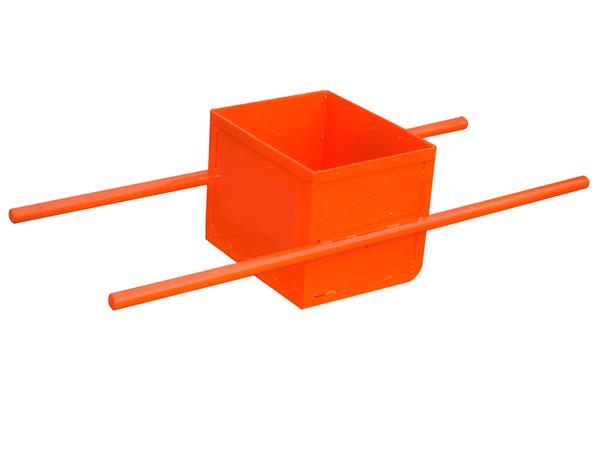

A Measuring Box 1.25 cft (cubic feet) is a standardized container, often 12“x12”x15", used in construction for accurate volume measurement of cement, sand, and aggregates to achieve consistent concrete or mortar mix ratios (like 1:1.5:3) without scales, ensuring uniform quality for site-mixed concrete batches. You use it by filling it level with material, then transferring it to the mixer, often alongside a standard cement bag, ensuring precise batching for different concrete grades. Key Details of a 1.25 cft Measuring Box Volume: 1.25 cubic feet (CFT) of space. Dimensions: Often approximates 12 inches (Length) x 12 inches (Width) x 15 inches (Height) internally. Material: Typically made from heavy-duty steel (e.g., 16g sheet with angle framing) for durability and repeated use. Purpose: To proportionally measure dry ingredients (cement, sand, coarse aggregate) for concrete and mortar, ensuring consistent mix quality. How it's Used Select Mix: Determine your concrete grade (e.g., M20) and its nominal ratio (e.g., 1 cement : 1.5 sand : 3 aggregate). Measure Ingredients: Fill the 1.25 cft box level (brim-full) with sand or aggregate, then empty it into the mixer. For a 1:1.5:3 mix, you'd add 1.5 boxes of sand and 3 boxes of aggregate per bag of cement. Batching: Add water and cement (often one bag) to the mixer, ensuring all ingredients are measured by volume using the box for consistency. Why it's Important Standardization: Replaces guesswork with measured volumes, crucial when weighing equipment is unavailable. Quality Control: Ensures consistent concrete strength and performance by maintaining precise ingredient proportions.

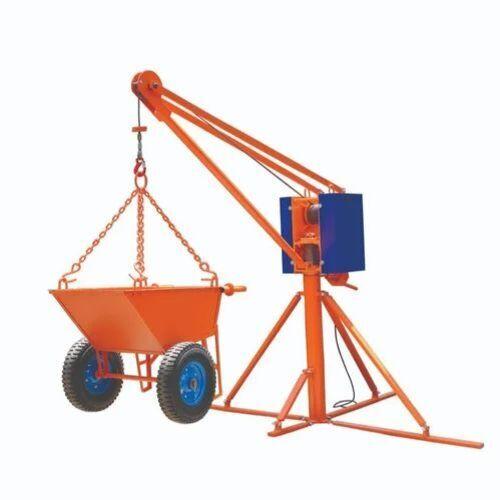

The 180-degree rotation feature on a mini lift, typically found in jib cranes or specialized forklift attachments/inverters, allows the lifting mechanism to cover a semi-circular workspace or turn over loads for specific tasks. The exact details depend on the type of equipment. 180-Degree Rotating Jib Cranes Jib cranes with 180-degree rotation are versatile lifting solutions for short-range, intensive material handling in specific areas like workshops and assembly lines. Mechanism: The crane's cantilever arm (jib) is fixed to a wall or concrete column and can pivot within a 180-degree angle. Operation: Rotation can be either manual (pushing the arm by hand) or motorized (using an electric motor for heavy loads or precision). Workspace Coverage: This rotation provides coverage of a semi-circular area, allowing the operator to pick up and place materials efficiently within that defined space. Space Efficiency: They do not occupy floor space with a central pillar, making them ideal for cramped workstations. Components: Column/Support: Provides structural stability. Cantilever Arm: The rotating beam that supports the hoist. Hoist: An electric chain hoist, wire rope hoist, or manual hoist that moves horizontally along the arm. Control System: Used to manage lifting and, if motorized, rotation and horizontal movement. 180-Degree Rotating Pallet Inverters / Forklift Attachments In the context of material handling, a 180-degree rotation feature can also be a specialized attachment for a forklift or a dedicated machine designed to physically turn a load (like a pallet or specific product) completely upside down. Mechanism: A clamping or gripping device secures the load and uses a hydraulic or electric system to physically rotate it 180 degrees. Purpose: This is used for tasks such as: Transferring loads from one type of pallet to another. Inverting products like doors or panels during manufacturing for assembly or cleaning. Servicing or cleaning a personal watercraft when it is on a specialized lift. Control: The rotation is typically controlled via a control system, which may include a wireless remote for ease of use. In summary, a mini lift with 180-degree rotation provides enhanced flexibility and range of motion for efficient material handling within a defined, often space-constrained, area or for specific load-inverting tasks.

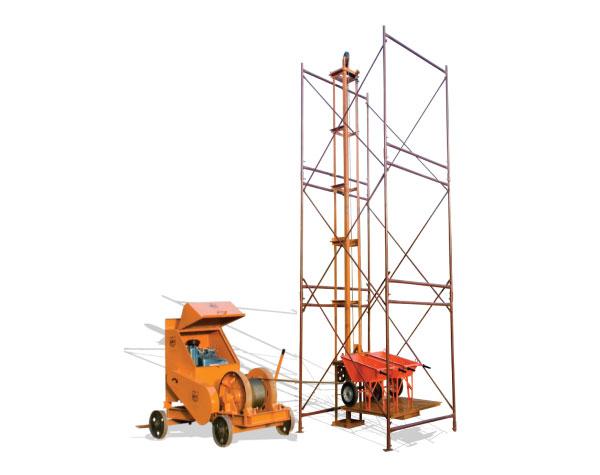

A Builder's Hoist (or Tower Hoist) is a crucial construction machine for safely lifting heavy materials (bricks, cement, tools) and sometimes workers vertically on high-rise sites, using an electric motor driving a rack-and-pinion system or winch to move a platform or cage up a mast, improving productivity by replacing manual labor and enabling vertical transport where cranes can't reach. Key features include sturdy mast sections, robust drive systems (electric/diesel), safety brakes, and platforms designed for efficient loading and unloading, with variations for materials only or personnel. Key Components Mast: A vertical tower structure made of bolted sections (often 3m long) that provides support and guidance for the platform. Hoisting Mechanism (Winch/Motor): An electric motor turns gears (pinions) that mesh with teeth on the mast (rack), pulling the platform up or down. Platform/Cage: Carries materials (like concrete, blocks) or workers, often with guardrails, designed for easy loading/unloading. Control Panel: For operating the hoist from the ground or platform. How it Works (Rack & Pinion) Power: An electric motor is activated. Gear Engagement: The motor turns a pinion gear. Vertical Movement: The pinion gear “climbs” the toothed rack attached to the mast, pulling the attached platform upwards. Descent: The motor reverses, allowing controlled lowering. Types & Features Material Hoists: Open platforms, focus on heavy loads (bricks, sand, concrete). Personnel/Material Hoists: Enclosed cabins for transporting people and materials. Power Options: Electric motors or diesel engines. Safety: Essential brakes, emergency stops, overload protection, and trained operators. Applications Lifting materials for high-rise buildings, bridges, and infrastructure. Transporting goods to floors where cranes can't easily reach. Reducing manual labor and speeding up construction.

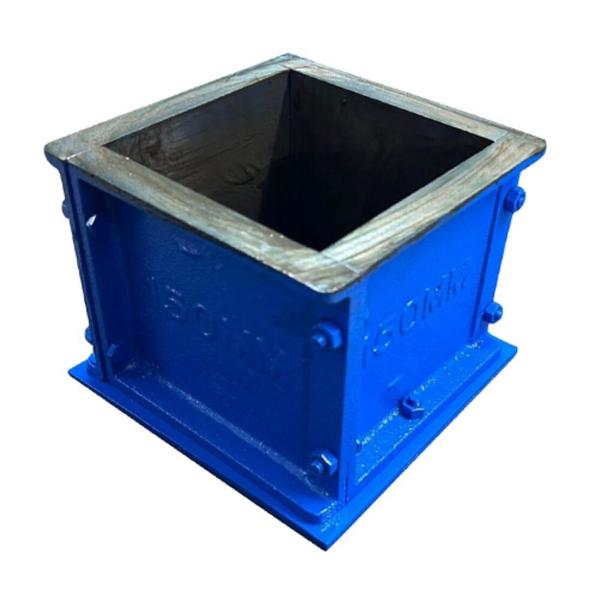

A cube mould is a precision-engineered container, usually cast iron or steel, used in construction labs to cast standardized concrete or mortar cubes for compressive strength testing, ensuring quality by creating specimens with flat faces (e.g., 150mm, 100mm, 50mm) to precise dimensional accuracy (like ±0.2mm) as per standards (BS, IS, ASTM). These moulds come with base plates and are critical for determining if concrete meets required strength standards for building projects. Key Details: Purpose: To form uniform cubes of fresh concrete or mortar for compressive strength tests, vital for quality control in civil engineering. Material: Typically made from high-quality cast iron or mild steel for durability and dimensional stability. Standard Sizes: Common sizes include 150x150x150mm, 100x100x100mm, and 50x50x50mm, with metric and inch options available. Accuracy: Faces are machined flat to tight tolerances (e.g., ±0.2mm for metric) to prevent distortion and ensure accurate test results, often meeting ISI, BS, or ASTM standards. Design: Often a 4-part clamp type for easy assembly/disassembly, sometimes with chamfered corners, and always includes a base plate. Usage: Filled with concrete, compacted, cured, and then tested in a compression testing machine to assess material quality. Types: Cast Iron (C.I.): Common, robust. Mild Steel (M.S.): Used for specific sizes like 70.6mm. Plastic/Polyurethane: Alternative materials for specific needs.

Electronic Weigh Batcher Machine (150 kg Capacity) at ...A weigh batcher machine precisely measures and dispenses raw materials (like cement, sand, aggregates) for mixing, ensuring uniform proportions, crucial for quality in concrete, food, or chemical production, using load cells for accuracy in manual, semi-automatic, or fully automated systems that control feeding and discharge for consistent, efficient production. Core Function & Components Purpose: To accurately weigh ingredients according to a recipe, eliminating human error from manual volume measurement. Key Parts: Hoppers (for storage), Load Cells (transduce weight into electrical signals), Weighing Hopper (where materials accumulate), Control System (manual, PLC, or microprocessor). Types & Automation Levels Manual: Operator manually adds materials to a scale; simple but less precise. Semi-Automatic: Manual loading of bins, but automated weighing and cut-off for each material. Fully Automatic: Central control system manages entire process, inputting recipes for single-click operation, common in modern plants. How it Works (Automated Example) Recipe Input: Operator enters desired quantities for materials (e.g., cement, sand, coarse aggregate) into the control system. Material Feed: The system opens gates/feeds for the first material (e.g., cement) from its silo/bin into the weighing hopper. Weighing: Load cells continuously measure the weight; when the target weight is met, the feed stops. Sequential Batching: The process repeats for each subsequent material (sand, aggregates). Discharge: Once all materials are weighed, the total batch is discharged into a mixer or processing line. Benefits Accuracy & Consistency: Ensures every batch meets exact specifications, vital for quality. Efficiency: Reduces labor costs and production time by automating processes and minimizing waste. Traceability: Modern systems offer data logging for quality control and compliance (Industry 4.0). Applications Construction: Concrete batching plants (most common). Food Industry: Baking, ingredient mixing. Chemicals & Pharma: Accurate formulation of products.
